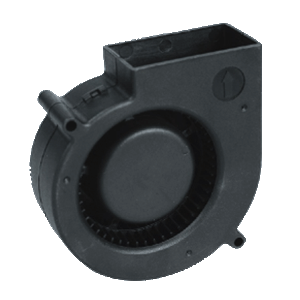

| B9733L12BS |
| 1.
MODEL NUMBER |
B9733L12B |
B9733L12S |
| 2. CATEGORY |
DC Round
Blower |
DC Round
Blower |
| 3. FRAME SIZE |
97 x 94 x33 mm (3.8 x 3.7 x1.3 inch) |
97 x 94 x33 mm (3.8 x 3.7 x1.3 inch) |
| 4. RATED VOLTAGE |
12 VDC |
12 VDC |
| 5. OPERATING VOLTAGE RANGE |
6.0 V ~ 13.8V |
6.0 V ~ 13.8 V |
| 6. START-UP VOLTAGE |
6 V / Min. |
6 V / Min. |
| 7. RATED MOTOR SPEED |
2200 RPM |
2200 RPM |
| 8. AIR FLOW |
15.19 CFM (0.43
m3/Min.) |
15.19 CFM (0.43
m3/Min.) |
| 9. STATIC PRESSURE |
10.08
mm/H2O (0.40 inch/H2O) |
10.08
mm/H2O (0.40 inch/H2O) |
| 10. RATED CURRENT |
0.3 Amp |
0.3 Amp |
| 11.
RATED INPUT POWER |
3.6 Watts |
3.6 Watts |
| 12. NOISE LEVEL |
40 dB(A) |
40 dB(A) |
| 13. DIRECTION OF ROTATION |
Clockwise viewed
from front label |
Clockwise viewed
from front label |
| 14. OPERATING TEMPERATURE |
-10% ~ + 70% / 66% (RH) |
-10% ~ + 70% / 66%
(RH) |
| 15. STORAGE TEMPERATURE |
-40% ~ + 75% / 66% (RH) |
-40% ~ + 75% / 66%
(RH) |
| 16. BEARING SYSTEM |
BALL BEARING |
SLEEVE BEARING |
| 17.LIFE EXPECTANCY |
70,000
Hrs |
30,000
Hrs |
| 18. SAFETY APPROVAL |
UL, CUL, TUV,
CE |
UL, CUL, TUV,
CE |
| 19. WEIGHT |
150 gm |
150 gm |
|
