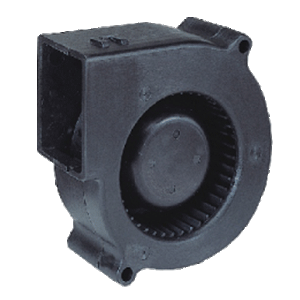

| B7530X24BS |
| 1.
MODEL NUMBER |
B7530X24B |
B7530X24S |
| 2. CATEGORY |
DC Round
Blower |
DC Round
Blower |
| 3. FRAME SIZE |
75 x 75 x30 mm (3.0 x 3.0 x1.2 inch) |
75 x 75 x30 mm (3.0 x 3.0 x1.2 inch) |
| 4. RATED VOLTAGE |
24 VDC |
24 VDC |
| 5. OPERATING VOLTAGE RANGE |
17 V ~ 24 V |
17 V ~ 24 V |
| 6. START-UP VOLTAGE |
17 V / Min. |
17 V / Min. |
| 7. RATED MOTOR SPEED |
4200 RPM |
4200 RPM |
| 8. AIR FLOW |
13.4 CFM (0.38
m3/Min.) |
13.4 CFM (0.38
m3/Min.) |
| 9. STATIC PRESSURE |
18.1
mm/H2O (0.71 inch/H2O) |
18.1
mm/H2O (0.71 inch/H2O) |
| 10. RATED CURRENT |
0.27 Amp |
0.27 Amp |
| 11.
RATED INPUT POWER |
6.48 Watts |
6.48 Watts |
| 12. NOISE LEVEL |
43 dB(A) |
43 dB(A) |
| 13. DIRECTION OF ROTATION |
Clockwise viewed
from front label |
Clockwise viewed
from front label |
| 14. OPERATING TEMPERATURE |
-10% ~ + 70% / 66% (RH) |
-10% ~ + 70% / 66%
(RH) |
| 15. STORAGE TEMPERATURE |
-40% ~ + 75% / 66% (RH) |
-40% ~ + 75% / 66%
(RH) |
| 16. BEARING SYSTEM |
BALL BEARING |
SLEEVE BEARING |
| 17.LIFE EXPECTANCY |
70,000
Hrs |
30,000
Hrs |
| 18. SAFETY APPROVAL |
UL, CUL, TUV,
CE |
UL, CUL, TUV,
CE |
| 19. WEIGHT |
100 gm |
100 gm |
|
