| B5020L12BS |
| 1.
MODEL NUMBER |
B5020L12B |
B5012L12S |
| 2. CATEGORY |
DC Round
Blower |
DC Round
Blower |

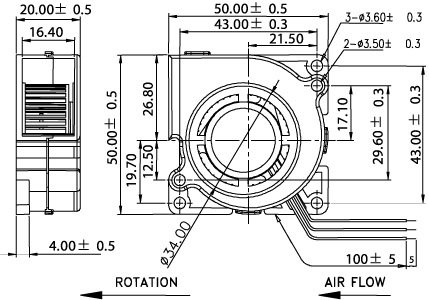

| 3. FRAME SIZE |
50 x 50 x 20 mm (2.0 x 2.0 x 0.8 inch) |
50 x 50 x 20 mm (2.0 x 2.0 x 0.8 inch) |
| 4. RATED VOLTAGE |
12 VDC |
12 VDC |
| 5. OPERATING VOLTAGE RANGE |
9 V ~ 15 V |
9 V ~ 15 V |
| 6. START-UP VOLTAGE |
9 V / Min. |
9 V / Min. |
| 7. RATED MOTOR SPEED |
4000 RPM |
4000 RPM |
| 8. AIR FLOW |
3.81 CFM (0.11
m3/Min.) |
3.81 CFM (0.11
m3/Min.) |
| 9. STATIC PRESSURE |
6.00 mm/H2O (0.24 inch/H2O) |
6.00 mm/H2O (0.24 inch/H2O) |
| 10. RATED CURRENT |
0.09 Amp |
0.09 Amp |
| 11.
RATED INPUT POWER |
1.08 Watts |
1.08 Watts |
| 12. NOISE LEVEL |
24.5 dB(A) |
24.5 dB(A) |
| 13. DIRECTION OF ROTATION |
Clockwise viewed
from front label |
Clockwise viewed
from front label |
| 14. OPERATING TEMPERATURE |
-10% ~ + 70% / 66% (RH) |
-10% ~ + 70% / 66%
(RH) |
| 15. STORAGE TEMPERATURE |
-40% ~ + 75% / 66% (RH) |
-40% ~ + 75% / 66%
(RH) |
| 16. BEARING SYSTEM |
BALL BEARING |
SLEEVE BEARING |
| 17.LIFE EXPECTANCY |
70,000
Hrs |
30,000
Hrs |
| 18. SAFETY APPROVAL |
UL, CUL, TUV,
CE |
UL, CUL, TUV,
CE |
| 19. WEIGHT |
35.8 gm |
35.8 gm |
|
