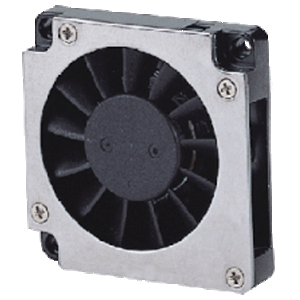

| B3507H05B |
| 1. MODEL
NUMBER |
B3507H05B |
| 2. CATEGORY |
DC Square Blower |
| 3. FRAME SIZE |
35 x 35 x 07 mm (1.4 x 1.4 x 0.3 inch) |
| 4. RATED VOLTAGE |
5 VDC |
| 5. OPERATING VOLTAGE RANGE |
4 V ~ 5.5 V |
| 6. START-UP VOLTAGE |
4 V / Min. |
| 7. RATED MOTOR SPEED |
7500 RPM |
| 8. AIR FLOW |
1.38 CFM (0.039 m3/Min.) |
| 9. STATIC PRESSURE |
6.7 mm/H2O (0.26 inch/H2O) |
| 10. RATED CURRENT |
0.23 Amp |
| 11. RATED
INPUT POWER |
1.15 Watts |
| 12. NOISE LEVEL |
26 dB(A) |
| 13. DIRECTION OF ROTATION |
Clockwise viewed
from front label |
| 14. OPERATING TEMPERATURE |
-10% ~ + 70% /
66% (RH) |
| 15. STORAGE TEMPERATURE |
-40% ~ + 75% /
66% (RH) |
| 16. BEARING SYSTEM |
BALL BEARING |
| 17.LIFE EXPECTANCY |
70,000 Hrs |
| 18. SAFETY APPROVAL |
UL, CUL, TUV,
CE |
| 19. WEIGHT |
13 gm |
|
