| A8025H23B/S-C |
| 1. MODEL NUMBER |
A8025H23B |
A8025H23S |
| 2. CATEGORY |
AXIAL AC FAN |
AXIAL AC FAN |

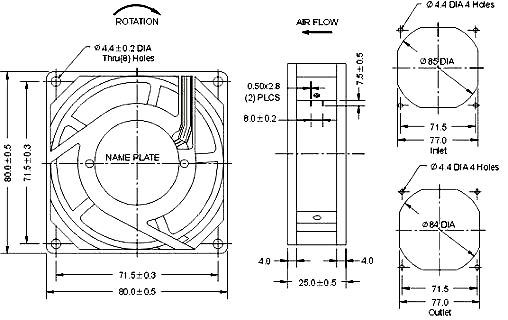

| 3. FRAME SIZE |
80 x 80 x 25 mm (3.1 x 3.1 x1.0 inch) |
80 x 80 x 25mm (3.1 x 3.1 x 1.0 inch) |
| 4. RATED VOLTAGE |
230 VAC |
230
VAC |
| 5. OPERATING VOLTAGE RANGE |
220V
~ 240V |
220V
~ 240V |
| 6. FREQUENCY |
50/60 Hz |
50/60 Hz |
| 7. RATED MOTOR SPEED |
2,800/3,350 RPM
|
2,500/3,000 RPM |
| 8. AIR FLOW |
28/33
CFM (0.79/0.93 m3/Min.) |
24/29
CFM (0.68/0.82 m3/Min.) |
| 9. STATIC PRESSURE |
3.6/5.3 mm/H2O (0.14/0.21 inch/H2O) |
3.0/4.4 mm/H2O (0.12/0.17 inch/H2O) |
| 10. RATED CURRENT |
0.08/0.09 Amp
|
0.08/0.09 Amp
|
| 11. RATED INPUT POWER |
17/19
Watts |
17/19
Watts |
| 12. NOISE LEVEL |
27/31
dB(A) |
24/29
dB(A) |
| 13. DIRECTION OF ROTATION |
Clockwise viewed from front label |
Clockwise viewed from front label |
| 14. OPERATING TEMPERATURE |
-10°C ~ + 55°C / 66% (RH) ± 20% |
-10°C ~ + 55°C / 66% (RH) ± 20% |
| 15. STORAGE TEMPERATURE |
-30°C ~ + 75°C / 66% (RH) ± 20% |
-30°C ~ + 75°C / 66% (RH) ± 20% |
| 16. BEARING SYSTEM |
BALL BEARING |
SLEEVE BEARING |
| 17. LIFE EXPECTANCY |
70,000 Hrs |
30,000 Hrs |
| 18. FRAME MATERIAL |
METAL W/ALUMINUM DIE-CASTING |
METAL W/ALUMINUM DIE-CASTING |
| 19. IMPELLER MATERIAL |
THERMOPLASTIC PBT OF UL 94V-0 |
THERMOPLASTIC PBT OF UL 94V-0 |
| 20. LEAD WIRE |
UL 1007, AWG#22 |
UL 1007, AWG#22 |
| 21. SAFETY |
UL, CUL, TUV, CE |
UL, CUL, TUV, CE |
| 22. WEIGHT |
260
gm |
260 gm |
