| A6030H23B/S |
| 1.
MODEL NUMBER |
A6030H23B |
A6030H23S |
| 2.
CATEGORY |
AXIAL
AC FAN |
AXIAL
AC FAN |
| 3.

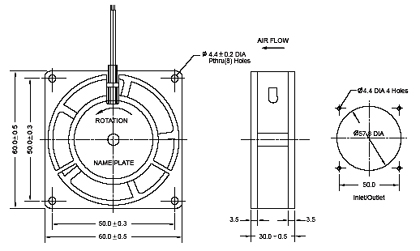

FRAME SIZE |
60
x 60 x 30mm (2.4 x 2.4 x 1.2 inch) |
60
x 60 x 30mm (2.4 x 2.4 x 1.2 inch) |
| 4.
RATED VOLTAGE |
230
VAC |
230
VAC |
| 5.
OPERATING VOLTAGE RANGE |
210V
~ 240V |
210V
~ 240V |
| 6.
FREQUENCY |
50/60
Hz |
50/60
Hz |
| 7.
RATED MOTOR SPEED |
2,550/3,100
RPM ±10% |
2,550/3,100
RPM ±10% |
| 8.
AIR FLOW |
8.3/11.0
CFM (0.24/0.31 m3/Min.) |
8.3/11.0
CFM (0.24/0.31 m3/Min.) |
| 9.
STATIC PRESSURE |
1.7/2.8
mm/H2O (0.07/0.11 inch/H2O) |
1.7/2.8
mm/H2O (0.07/0.11 inch/H2O) |
| 10.
RATED CURRENT |
0.022/0.020
Amp ±10% |
0.022/0.020
Amp ±10% |
| 11.
RATED INPUT POWER |
5/4
Watts ±10% |
5/4
Watts ±10% |
| 12.
NOISE LEVEL |
27/28
dB(A) |
27/28
dB(A) |
| 13.
DIRECTION OF ROTATION |
Clockwise
viewed from front label |
Clockwise
viewed from front label |
| 14.
OPERATING TEMPERATURE |
-20°C
~ + 75°C
/ 66% (RH) ±
20% |
-20°C
~ + 75°C
/ 66% (RH) ±
20% |
| 15.
STORAGE TEMPERATURE |
-30°C
~ + 75°C
/ 66% (RH) ±
20% |
-30°C
~ + 75°C
/ 66% (RH) ±
20% |
| 16.
BEARING SYSTEM |
BALL
BEARING |
SLEEVE
BEARING |
| 17.
LIFE EXPECTANCY |
70,000
Hrs |
30,000
Hrs |
| 18.
FRAME MATERIAL |
METAL
W/ALUMINUM DIE-CASTING |
METAL
W/ALUMINUM DIE-CASTING |
| 19.
IMPELLER MATERIAL |
THERMOPLASTIC
PBT OF UL 94V-0 |
THERMOPLASTIC
PBT OF UL 94V-0 |
| 20.
LEAD WIRE |
UL
1007, AWG#22 |
UL
1007, AWG#22 |
| 21.
SAFETY |
UL,
CUL, TUV, CE |
UL,
CUL, TUV, CE |
| 22.
WEIGHT |
145 gm |
145 gm |
