| A25489H23B-C |
| 1. MODEL NUMBER |
A25489H23B-C |
| 2. CATEGORY |
AXIAL AC FAN |

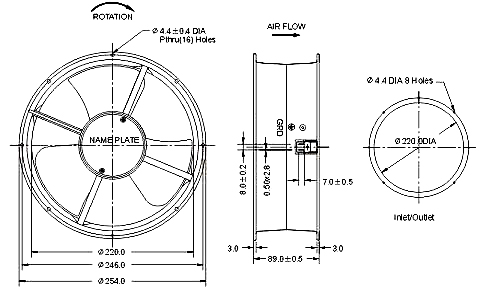

| 3. FRAME SIZE |
254rd
x 89 mm (10.16rd x 3.56 inch) |
| 4. RATED VOLTAGE |
230
VAC |
| 5. OPERATING VOLTAGE RANGE |
220V
~ 240V |
| 6. FREQUENCY |
50/60 Hz |
| 7. RATED MOTOR SPEED |
1,400/1,650 RPM
|
| 8. AIR FLOW |
600/665
CFM (16.98/18.833/Min.) |
| 9. STATIC PRESSURE |
8.9/11.9
mm/H2O (0.35/0.46 inch/H2O) |
| 10. RATED CURRENT |
0.16/0.17 Amp
|
| 11. RATED INPUT POWER |
32/35
Watts |
| 12. NOISE LEVEL |
52/55
dB(A) |
| 13. DIRECTION OF ROTATION |
Clockwise viewed from front label |
| 14. OPERATING TEMPERATURE |
-20°C ~ + 75°C / 66% (RH) ± 20% |
| 15. STORAGE TEMPERATURE |
-30°C ~ + 75°C / 66% (RH) ± 20% |
| 16. BEARING SYSTEM |
BALL BEARING |
| 17. LIFE EXPECTANCY |
70,000 Hrs |
| 18. FRAME MATERIAL |
Aluminum Alloy |
| 19. IMPELLER MATERIAL |
THERMOPLASTIC PBT OF UL 94V-0 |
| 20. LEAD WIRE |
UL 1015, AWG#22 |
| 21. SAFETY |
UL, CUL, TUV, CE |
| 22. WEIGHT |
2150
gm |
|
