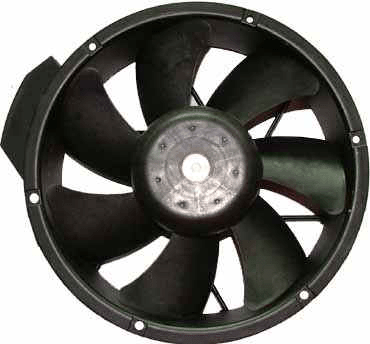

| A2268H-C(M2) |
| 1. MODEL NUMBER |
A2268H11B-C(M2) |
A2268H23B-C(M2) |
A2268H38B-C(M2) |
| 2. CATEGORY |
AXIAL AC FAN |
AXIAL AC FAN |
AXIAL AC FAN |

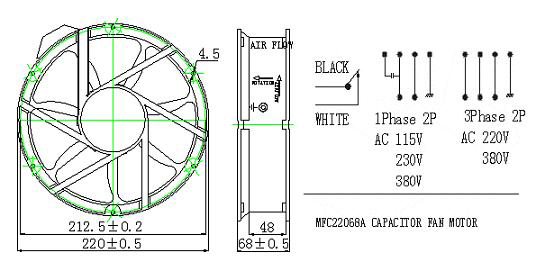

| 3. FRAME SIZE |
220rd
x 68 mm (8.7rd x 2.7 inch) |
220rd
x 68 mm (8.7rd x 2.7 inch) |
220rd
x 68 mm (8.7rd x 2.7 inch) |
| 4. RATED VOLTAGE |
110
VAC |
220
VAC |
380
VAC |
| 5. OPERATING VOLTAGE RANGE |
100V
~ 120 V |
160
~ 260 V |
300
~ 400 V |
| 6. FREQUENCY |
50/60 Hz |
50/60
Hz |
50/60
Hz |
| 7. RATED MOTOR SPEED |
2,850/3,450 RPM |
2,850/3,450 RPM |
2,850/3,450 RPM |
| 8. AIR FLOW |
550/725
CFM (15.17/20.533/Min.) |
550/725
CFM (15.17/20.533/Min.) |
550/725
CFM (15.17/20.533/Min.) |
| 9. STATIC PRESSURE |
31.60/37.72
mm/H2O (1.24/1.49 inch/H2O) |
31.60/37.72
mm/H2O (1.24/1.49 inch/H2O) |
31.60/37.72
mm/H2O (1.24/1.49 inch/H2O) |
| 10. RATED CURRENT |
0.18/0.25 Amp |
0.12/0.15
Amp |
0.10/0.15
Amp |
| 11. RATED INPUT POWER |
20/28
Watts |
26/40
Watts |
38/57
Watts |
| 12. NOISE LEVEL |
60/75
dB(A) |
60/75
dB(A) |
60/75
dB(A) |
| 13. DIRECTION OF ROTATION |
Counter-Clockwise
Viewed from Fan Blade |
Counter-Clockwise
Viewed from Fan Blade |
Counter-Clockwise
Viewed from Fan Blade |
| 14. OPERATING TEMPERATURE |
-20°C ~ + 120°C |
-20°C ~ + 120°C |
-20°C ~ + 120°C |
| 15. STORAGE TEMPERATURE |
-40°C ~ + 120°C |
-40°C ~ + 120°C |
-40°C ~ + 120°C |
| 16. BEARING SYSTEM |
BALL BEARING |
BALL BEARING |
BALL BEARING |
| 17. LIFE EXPECTANCY |
70,000 Hrs |
70,000 Hrs |
70,000 Hrs |
| 18. FRAME MATERIAL |
Aluminum Case |
Aluminum Case |
Aluminum Case |
| 19. IMPELLER MATERIAL |
THERMOPLASTIC PBT OF UL 94V-0 |
THERMOPLASTIC PBT OF UL 94V-0 |
THERMOPLASTIC PBT OF UL 94V-0 |
| 20. LEAD WIRE |
Terminals |
Terminals |
Terminals |
| 21. SAFETY |
UL, CUL, TUV, CE |
UL, CUL, TUV, CE |
UL, CUL, TUV, CE |
| 22. WEIGHT |
2750
g |
2750
g |
2750
g |
|
