| A1752H11B/S |
| 1.
MODEL NUMBER |
A1752H11B |
A1752H11S |
| 2.
CATEGORY |
AXIAL
AC FAN |
AXIAL
AC FAN |
| 3.

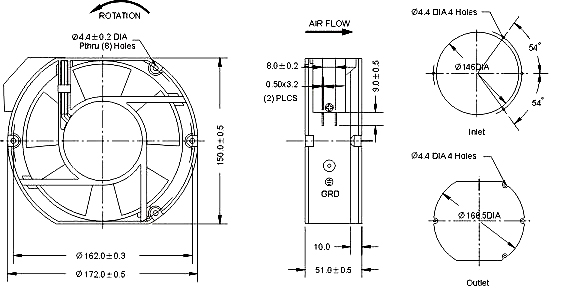

FRAME SIZE |
172x
162 x51mm (6.7 x 6.3 x 2.0inch) |
172x
162 x51mm (6.7 x 6.3 x 2.0inch) |
| 4.
RATED VOLTAGE |
115
VAC |
115
VAC |
| 5.
OPERATING VOLTAGE RANGE |
100V
~125V |
100V
~125V |
| 6.
FREQUENCY |
50/60
Hz |
50/60
Hz |
| 7.
RATED MOTOR SPEED |
2700/3000
RPM ±10% |
2700/3000
RPM ±10% |
| 8.
AIR FLOW |
203/238
CFM (5.75/6.74m3/Min.) |
203/238
CFM (5.75/6.74m3/Min.) |
| 9.
STATIC PRESSURE |
11.3/13
mm/H2O (0.44/0.51 inch/H2O) |
11.3/13
mm/H2O (0.44/0.51 inch/H2O) |
| 10.
RATED CURRENT |
0.6
Amp ±10% |
0.6
Amp ±10% |
| 11.
RATED INPUT POWER |
47/41
Watts ±10% |
47/41
Watts ±10% |
| 12.
NOISE LEVEL |
51/55
dB(A) |
51/55
dB(A) |
| 13.
DIRECTION OF ROTATION |
Clockwise
viewed from front label |
Clockwise
viewed from front label |
| 14.
OPERATING TEMPERATURE |
-10°C
~ + 90°C / 66% (RH) ±
20% |
-10°C
~ + 90°C / 66% (RH) ±
20% |
| 15.
STORAGE TEMPERATURE |
-40°C
~ + 90°C / 66% (RH) ±
20% |
-40°C
~ + 90°C / 66% (RH) ±
20% |
| 16.
BEARING SYSTEM |
BALL
BEARING |
SLEEVE
BEARING |
| 17.
LIFE EXPECTANCY |
70,000
Hrs |
30,000
Hrs |
| 18.
FRAME MATERIAL |
METAL
W/ALUMINUM DIE-CASTING |
METAL
W/ALUMINUM DIE-CASTING |
| 19.
IMPELLER MATERIAL |
THERMOPLASTIC
PBT OF UL 94V-0 |
THERMOPLASTIC
PBT OF UL 94V-0 |
| 20.
LEAD WIRE |
UL
1015, AWG#22 |
UL
1015, AWG#22 |
| 21.
SAFETY |
UL,
CUL, TUV, CE |
UL,
CUL, TUV, CE |
| 22.
WEIGHT |
880gm |
880 gm |
