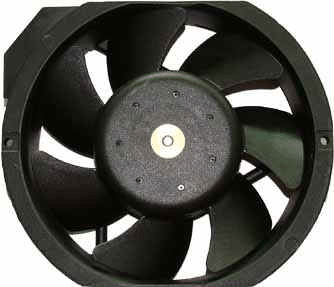

A1738H-C(X2)
1. MODEL NUMBER A1738H11B-C(X2)
A1738H23B-C(X2)
2. CATEGORY AXIAL AC FAN
AXIAL AC FAN

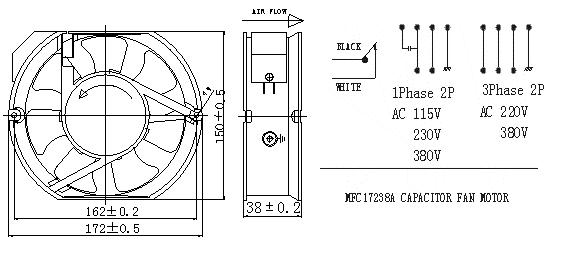

3. FRAME SIZE 172 x 162 x 38 mm (6.7 x 6.3 x 1.5 inch)
172 x 162 x 38 mm (6.7 x 6.3 x 1.5 inch)
4. RATED VOLTAGE 115 VAC
230 VAC
5. OPERATING VOLTAGE RANGE 100V ~ 120 V
160 ~ 260 V
6. FREQUENCY 50/60 Hz
50/60 Hz
7. RATED MOTOR SPEED 2,850/3,450 RPM
2,850/3,450 RPM
8. AIR FLOW 240/280 CFM (6.80/7.93 3/Min.)
240/280 CFM (6.80/7.93 3/Min.)
9. STATIC PRESSURE 14.68/17.13 mm/H2O (0.58/0.67 inch/H2O)
14.68/17.13 mm/H2O (0.58/0.67 inch/H2O)
10. RATED CURRENT 0.18/0.25 Amp
0.12/0.15 Amp
11. RATED INPUT POWER -- Watts
-- Watts
12. NOISE LEVEL 35/42 dB(A)
35/42 dB(A)
13. DIRECTION OF ROTATION Counter-Clockwise Viewed from Fan Blade
Counter-Clockwise Viewed from Fan Blade
14. OPERATING TEMPERATURE -20°C ~ + 120°C
-20°C ~ + 120°C
15. STORAGE TEMPERATURE -40°C ~ + 120°C
-40°C ~ + 120°C
16. BEARING SYSTEM BALL BEARING
BALL BEARING
17. LIFE EXPECTANCY 70,000 Hrs
70,000 Hrs
18. FRAME MATERIAL Aluminum Case
Aluminum Case
19. IMPELLER MATERIAL THERMOPLASTIC PBT OF UL 94V-0
THERMOPLASTIC PBT OF UL 94V-0
20. LEAD WIRE Terminals
Terminals
21. SAFETY UL, CUL, TUV, CE
UL, CUL, TUV, CE
22. WEIGHT 950 g
950 g
