| A17251M-C(X2) |
|
|
| 1. MODEL NUMBER |
A17251M11B-C(X2) |
A17251M23B-C(X2) |
| 2. CATEGORY |
AXIAL AC FAN |
AXIAL AC FAN |

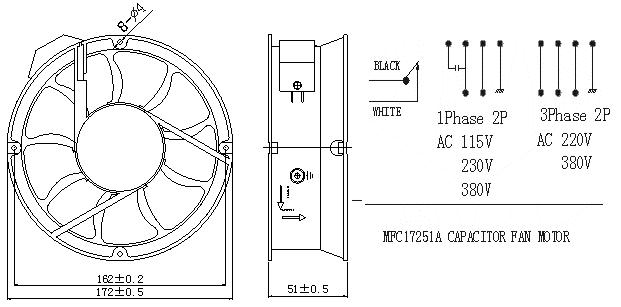

| 3. FRAME SIZE |
172rd
x 51 mm (6.7rd x 2 inch) |
172rd
x 51 mm (6.7rd x 2 inch) |
| 4. RATED VOLTAGE |
115
VAC |
230
VAC |
| 5. OPERATING VOLTAGE RANGE |
100V
~ 120V |
160V
~ 260V |
| 6. FREQUENCY |
50/60 Hz |
50/60 Hz |
| 7. RATED MOTOR SPEED |
2,850/3,450 RPM
|
2,850/3,450 RPM
|
| 8. AIR FLOW |
370/430FM
(10.48/12.18 3/Min.) |
370/430
CFM (10.48/12.18 3/Min.) |
| 9. STATIC PRESSURE |
19.88/24.97 mm/H2O (0.78/0.98 inch/H2O) |
19.88/24.97 mm/H2O (0.78/0.98 inch/H2O) |
| 10. RATED CURRENT |
0.18/0.25 Amp
|
0.12/0.15 Amp
|
| 11. RATED INPUT POWER |
--
Watts |
--
Watts |
| 12. NOISE LEVEL |
38/45
dB(A) |
38/45
dB(A) |
| 13. DIRECTION OF ROTATION |
Counter-Clockwise
Viewed From Fan Blade |
Counter-Clockwise
Viewed From Fan Blade |
| 14. OPERATING TEMPERATURE |
-20°C ~ +120°C |
-20°C ~ +120°C |
| 15. STORAGE TEMPERATURE |
-40°C ~ +120°C |
-40°C ~ +120°C |
| 16. BEARING SYSTEM |
BALL BEARING |
BALL BEARING |
| 17. LIFE EXPECTANCY |
70,000 Hrs |
70,000 Hrs |
| 18. FRAME MATERIAL |
Aluminum Case |
Aluminum Case |
| 19. IMPELLER MATERIAL |
High
Temp. resistence Non-flammable thermoplastioc PBT UL 94V-0 |
High
Temp. resistence Non-flammable thermoplastioc PBT UL 94V-0 |
| 20. LEAD WIRE |
Terminals |
Terminals |
| 21. SAFETY |
UL, CUL, TUV, CE |
UL, CUL, TUV, CE |
| 22. WEIGHT |
1160
gm |
1160
gm |
|
